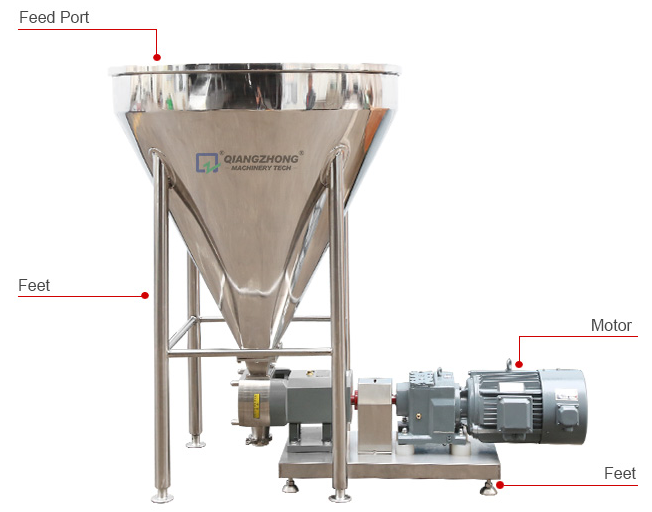

KHOOM Npe
Lub rotor twj tso kua mis yog qhov hloov mus rau qhov zoo ntawm lub twj tso kua mis, lub nruab nrab lub siab-lub zog loj ib leeg ntsia hlau cov twj tso kua mis. Nws siv lub sij hawm hloov pauv ntawm ntau qhov hloov kho ntim rau cov khoom xa tuaj rau hauv lub twj tso kua mis kom xa kua. Ib cov kab noj hniav yog tsim nyob nruab nrab ntawm lub twj tso kua mis lub cev thiab lub rotor los ntawm eccentricity. Thaum lub cev muaj zog lub puab tsaig kom tig los ntawm txoj siv rub tawm, cov hniav hauv rotor qhov txuas nrog rau lub twj tso kua mis lub cev phab ntsa ntawm lub cam rotor twj vim lub zog centrifugal. Thaum cov paj ntsaws pib tig los ntawm lub ntsis ntawm cov kab noj hniav mus rau nruab nrab, qhov chaw nruab nrab ntawm ob lub ntsej sib txuas thiab lub twj tso kua mis lub cev maj mam loj dua, ua tiav cov txheej txheem nqus. Tom qab dhau qhov nruab nrab, qhov chaw ntawm cam rotor twj tso kua mis maj mam hloov ntawm qhov loj mus rau me me, ua tiav cov txheej txheem tawm, thiab cov khoom raug nias tawm ntawm qhov hluav taws xob ntawm lwm qhov ntawm kab noj hniav. Nws yog qhov tshwj xeeb tshaj yog rau kev thauj mus los ntawm cov ntawv tshaj tawm huv thiab xeb thiab siab viscosity media.
Kev Xaiv Chaw Sib Kis:
• Lub cev muaj zog + Tsau Txo Cov Hluav Taws Xob: cov qauv no sib kis tau yooj yim, lub rotor nrawm tsis hloov tas li, uas tseem txiav txim siab qhov khiav nrawm tsis tuaj yeem hloov kho.
• Lub Cev Muaj Zog + Mechanical Txhim Kho Cov Ntaus Sib Hloov Hloov: hom kev sib kis no tau muab kho nrog tus kheej kom tau txais cov txiaj ntsig sib txawv. Nws yog tsiag ntawv los ntawm muaj kev nyab xeeb thiab txhim khu kev ntseeg, loj torque, ntws tuaj yeem kho tau ntawm qhov tsis tuaj yeem. Kev tsis zoo yog qhov tsis hloov kho qhov tsis zoo thiab qhov teebmeem ntxiv. Qhov nrawm yuav tsum tau kho nyob rau hauv cov txheej txheem ua haujlwm, thiab nws yuav tsum tsis txhob kho nyob rau hauv lub xeev nres. Thov saib raws li cov khw muag cov lus qhia rau kev siv thiab txij nkawm tshwj xeeb.
• Hloov lub cev muaj zog + Cov hloov pauv: qhov nrawm tuaj yeem hloov kho nyob rau hauv txoj kev no, uas txhais tau tias cov ntws tuaj yeem hloov kho tsis siv neeg. Qhov kom zoo dua yog tias qhov degree ntawm automation yog siab thiab lub zog qeeb qeeb yog loj; Qhov tsis zoo yog tias tus nqi ntawm lub inverter yog tus nqi siab. Thov saib nyob rau ntawm phau ntawv qhia chaw tsim tshuaj paus rau kev qhia tu cov hauj lwm.
KHOOM SIV PARAMETERS
|
Qauv |
Lub cev muaj zog (kw) |
Kev Rhais Chaw (L) |
Cov Khwv Ceev (r / min) |
Tsheb khiav (L / H) |
Txoj kab uas hla (hli) |
|
ZB3A-3 |
0,55 |
3 |
200-500 |
300-800 |
DN20 |
|
ZB3A-6 |
0.75 |
6 |
200-500 |
650-1600 |
DN20 |
|
ZB3A-8 |
1.5 |
8 |
200-500 |
850-2160 |
DN40 |
|
ZB3A-12 |
2.2 |
12 |
200-500 |
1300-3200 |
DN40 |
|
ZB3A-20 |
3 |
20 |
200-500 |
2100-5400 |
DN50 |
|
ZB3A-30 |
4 |
30 |
200-500 |
3200-6400 |
DN50 |
|
ZB3A-36 |
4 |
36 |
200-400 |
3800-7600 |
DN65 |
|
ZB3A-52 |
5.5 |
52 |
200-400 |
5600-11000 |
DN80 |
|
ZB3A-66 |
7,5 |
70 |
200-400 |
7100-14000 |
DN65 |
|
ZB3A-78 |
7,5 |
78 |
200-400 |
9000-18000 |
DN80 |
|
ZB3A-100 |
11 |
100 |
200-400 |
11000-21600 |
DN80 |
|
ZB3A-135 |
15 |
135 |
200-400 |
15000-30000 |
DN80 |
|
ZB3A-160 |
18,5 |
160 |
200-400 |
17000-34000 |
DN80 |
|
ZB3A-200 |
22 |
200 |
200-400 |
21600-43000 |
DN80 |
|
ZB3A-300 |
30 |
300 |
200-400 |
31600-63000 |
DN100 |
UA HAUJ LWM ZOO LICAS
Lub rotor twj tso kua mis tseem hu ua colloid twj tso kua mis, tri-lobe lub twj tso kua mis, khau tib lub twj tso kua mis, thiab lwm yam. nqus cov khoom.
Lub rotors faib rotor chav tso rau hauv ntau qhov chaw me me thiab khiav raws qhov kev txiav txim ntawm a-b- * c-d. Thaum khiav mus rau qhov chaw a, tsuas yog chav kuv puv nrog nruab nrab;
Thaum nws nce mus txog txoj hauj lwm b, ib feem ntawm qhov nruab nrab yog kaw hauv chamber B;
Thaum nws nce mus txog txoj hauj lwm c, qhov nruab nrab kuj kaw hauv chav A;
Thaum nws mus txog txoj hauj lwm d, cov chav A thiab B tau txuas rau chav II, thiab qhov nruab nrab thauj mus rau qhov chaw nres nkoj tawm.
Ua li no, nruab nrab yog kev thauj mus los tsis tu ncua.
Lub lobe twj tso kua mis yog lub hom phiaj ntau lub twj tso kua mis hloov uas siv ob-lobe, tri-lobe, npauj npaim lossis ntau lub lobe rotor. Raws li kev huv volumetric lub twj tso kua mis, nws muaj cov yam ntxwv ntawm kev nrawm qis, siab tso zis lub zog, siab kub tsis kam, ua hauj corrosion, thiab lwm yam. Nws cov haujlwm ua haujlwm thiab cov yam ntxwv tau muab tso rau hauv kev xa cov viscosity, siab kub, thiab cov ntaub ntawv zoo nkauj. Nws cov txheej txheem conveying yog tus thiab tsis tu ncua, thiab nws tuaj yeem ua kom lub zog lub zog ntawm cov khoom tsis tawg thaum lub sijhawm txheej txheem conveying, thiab viscosity ntawm cov khoom xa tawm tuaj yeem nce mus txog 1,000,000 CP.
  Tri-lobe RotorTri-lobe rotor yog cov ntawv siv dav hlau tshaj plaws, uas yog siv tshwj xeeb hauv ntau qhov kev lag luam los tsim ntau yam khoom siv khov, thiab nws tseem yog qhov feem ntau siv. |
 Npauj Npaim RotorCov npauj npaim rotor feem ntau tsim nyog rau kev xa cov ntawv sau lossis cov khoom viscous uas muaj cov khoom haum, thiab ib qho me me ntawm cov khoom tawg yuav tawg thaum lub sijhawm kev thauj mus los. |
 Ib Leeg-robe RotorNws tau mob siab rau kev thauj khoom ntawm cov khoom muaj cov khoom loj, thiab nws cov duab thiab nkhaus ua nws zoo dua lwm cov twj thaum thauj cov khoom loj, thiab nws tuaj yeem zam kev puas tsuaj ntawm cov khoom thaum lub sijhawm kev thauj mus los. |
 Ntau lub lobe RotorThaum rotor hniav ntau tshaj li peb nplooj, nws lub peev xwm volumetric tsawg dua vim tias qhov nce ntawm rotor hniav, thiab ntau qhov rotor hniav, tsawg dua qhov muaj peev xwm volumetric. Qhov ntau-lobe rotor xyuas kom meej tias kev ruaj ntseg ntawm kev conveyed |
DAIM NTAWV THOV KEV PAUV
DAIM NTAWV THOV KEV PAUV
Siab Viscosity Khoom Hloov Twj Tso Kua Mis
Raws li qhov zoo hloov twj tso kua mis, nws muaj kev nrawm qis, tso zis siab thiab siab kub tsis kam, ua rau nws tshwj xeeb rau kev xa cov viscosity siab thiab cov khoom kub. Nws cov cai ua haujlwm tshwj xeeb ua ke nrog lub zog tsav tsheb kom ntseeg tau tias lub rotor twj muaj peev xwm tsim tawm lub zog muaj zog tsav lub zog ntawm kev nrawm. Nws yog xyuas kom meej tias cov khoom raug xa mus tsis tu ncua thiab tsis poob qis, thiab tias cov yam ntxwv ntawm cov khoom tsis raug rhuav tshem thaum txheej txheem conveying. Lub twj tso tawm tuaj yeem xa cov xov xwm nrog viscosities txog 1000000CP.
Nyias Media Hloov twj tso kua mis
Rotor twj muaj qhov sib piv tau zoo dua thaum thauj cov xov xwm nyias tshwj xeeb, tshwj xeeb tshaj yog thaum yuav tsum tsim tawm cov khoom nruab nrab tsis muaj mem tes. Lub kaw lus tsav nruab nrog lub rotor twj muaj peev xwm ua haujlwm ntawm lub pob hluav taws xob ntau dua thaum lub viscosity ntawm qhov nruab nrab kom raug thauj tsawg dua, thiab cov dej xau tuaj yeem nce ntxiv, kom ntseeg tau ib qho kev hloov tawm ntawm qhov feem cuam.
Huv Hloov Twj Tso Kua Mis
Txhua feem hauv kev sib cuag nrog cov khoom siv yog ua los ntawm cov hlaus tsis xeb hlau uas ua tau raws li tus qauv kev tu cev. Nws yog tsim rau txhua qhov huv thiab xeb kev tiv thaiv kev thov thiab yog siv dav hauv zaub mov, dej haus, kws tshuaj, tshuaj lom neeg thiab lwm yam lag luam.
Nrog Rwb Rwb Tsho
Ua raws li cov kev xav tau ntawm qhov chaw ua haujlwm sib txawv, ib lub tsho tiv thaiv kab mob tuaj yeem ntxiv rau lub twj lub rotor. Cov qauv no tuaj yeem ua kom paub tseeb tias cov khoom siv uas yooj yim los ua kom muaj zog ntawm qhov kub tsis txias lub xeev tau khaws cia ntawm qhov kub tsis tu ncua thaum lub sijhawm kev thauj mus los, thiab tsis muaj hws tshwm sim.
Dej ntws cov nplaim dej muaj tshuab foob
Cov txheej txheem foob lub tshuab nrog cov dej ntws tawm muaj peev xwm muab tau los tiv thaiv cov khoom tawm ntawm qhov hws ntawm qhov kawg lub ntsej muag ntawm lub tshuab foob thaum lub sijhawm txheej txheem cov khoom siv viscosity siab, yog li cuam tshuam rau kev ua haujlwm ntawm cov khoom siv niaj hnub thiab ua kom paub tseeb tias kev siv tshuab cov ntsaws ruaj ruaj rau hauv chaw ib puag ncig hnyav. lub neej.
